2000W Handheld laser welding machine

2000W Handheld laser welding machine

2000W hand-held laser welding machine, suitable for sheet welding, with wire feeder for welding metal plates with thickness of 0.8-6mm

price$5800-6500

Compared with 1000W handheld laser welding machine, the thickness of welding material is increased, and the laser penetration depth will be deepened. This power laser welding machine is widely used, mostly for sheet welding.

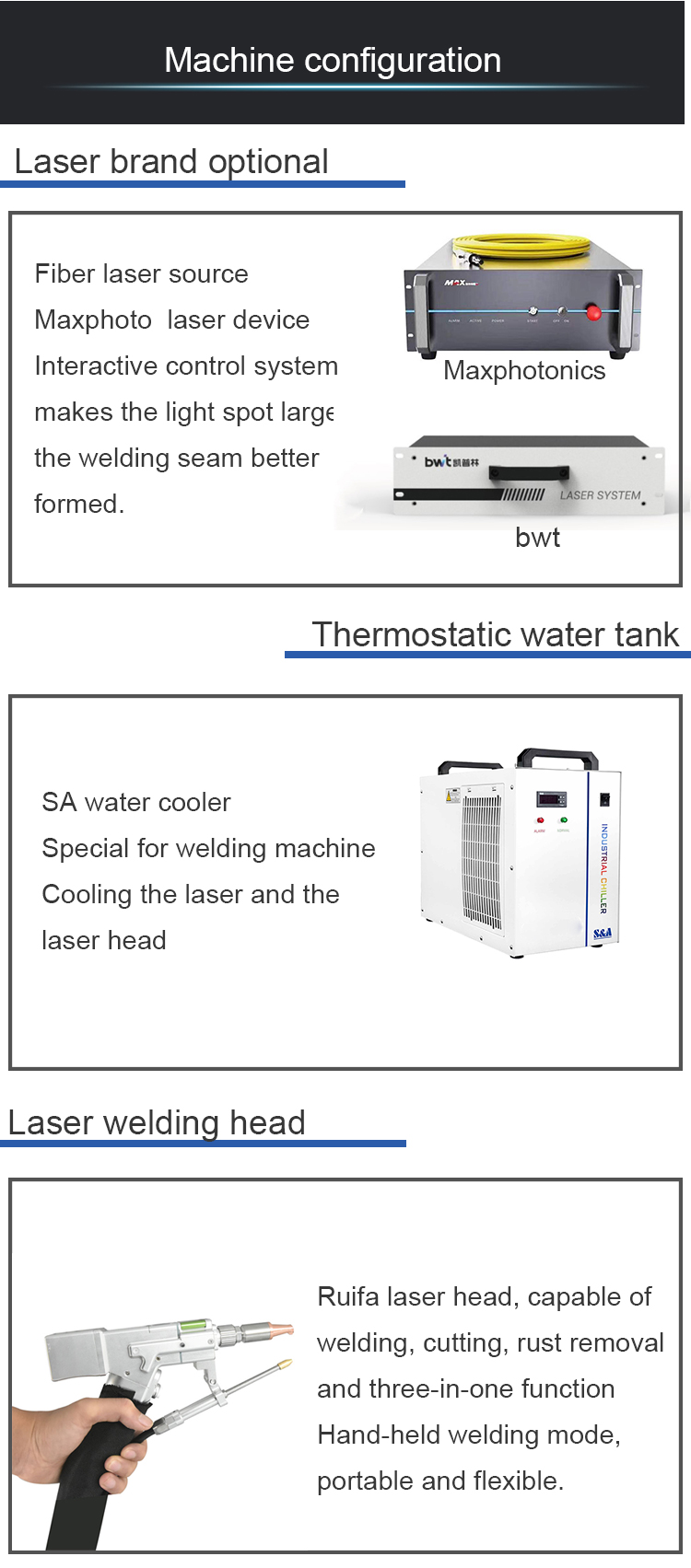

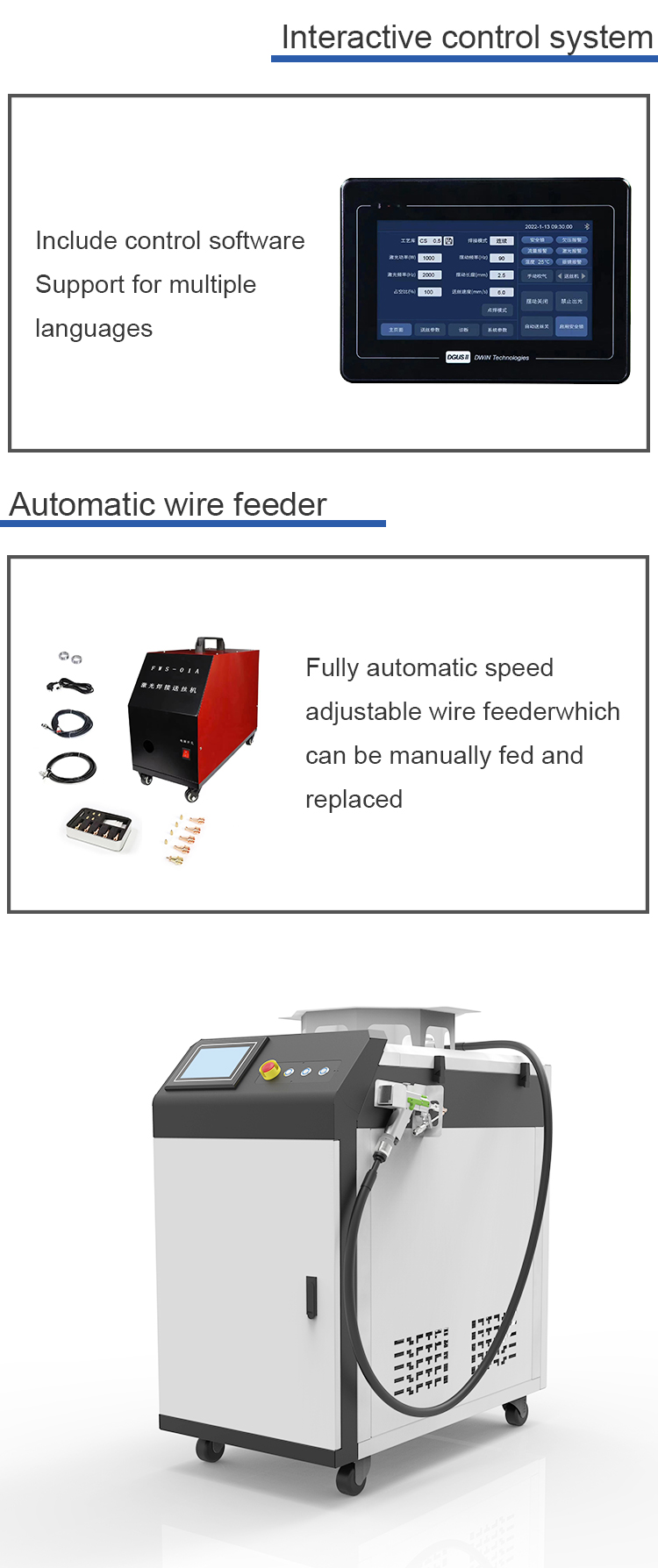

Main components of hand-held laser welding machine:


numberProjectBrandDescription
1LasersMAX/BWT/RaycusTop laser manufacturing factory in China
2Control systemRelfarIndustry front-line control system brand
3Hand-held rust removal headRelfarThe all-aluminum model of the fuselage is compact and lightweight.
4Water coolerS&A ChillerPreferred Refrigeration Brand in Laser Industry
5CabinetGoldlaserOne of the appearance patents of Goldlaser
6Electrical accessoriesGHJTMainstream quality is adopted in electrical accessories.

Welding video

Comparison table of welding thickness of hand-held laser welding machine

PowerStainless steelCarbon steelAluminium
1000W3mm5mm2mm
1500W5mm
7mm3mm
2000W8mm10mm4mm
3000W12mm12mm6mm

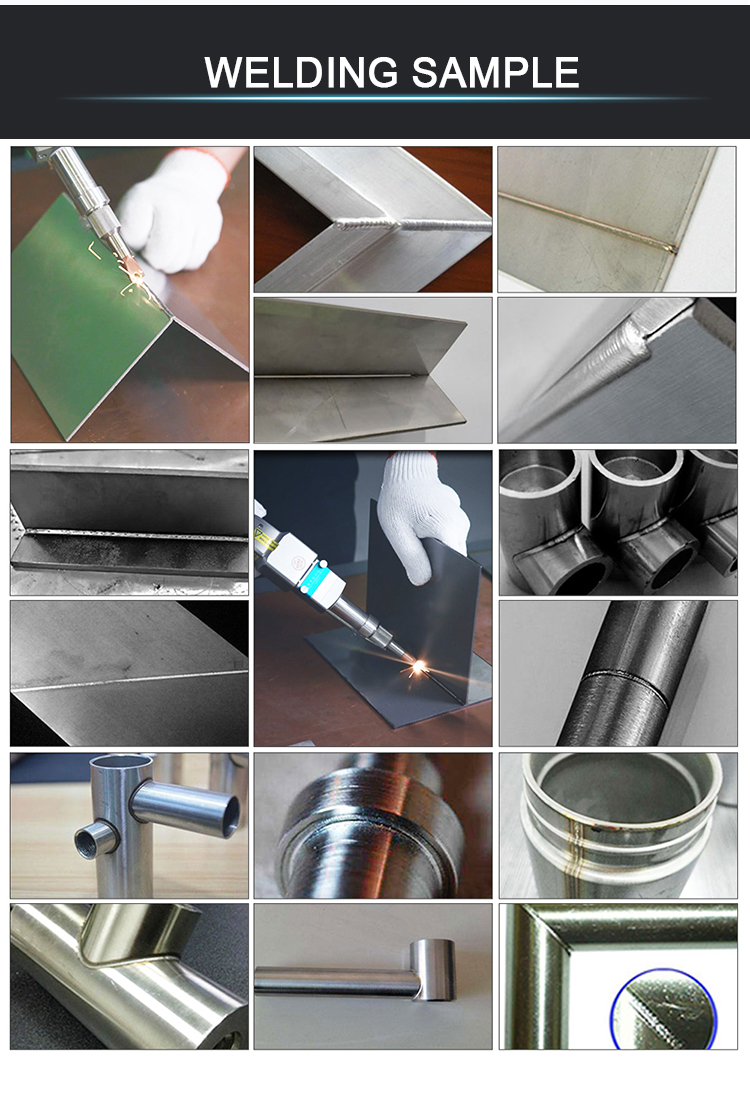

Effect photo of hand-held laser welding machine

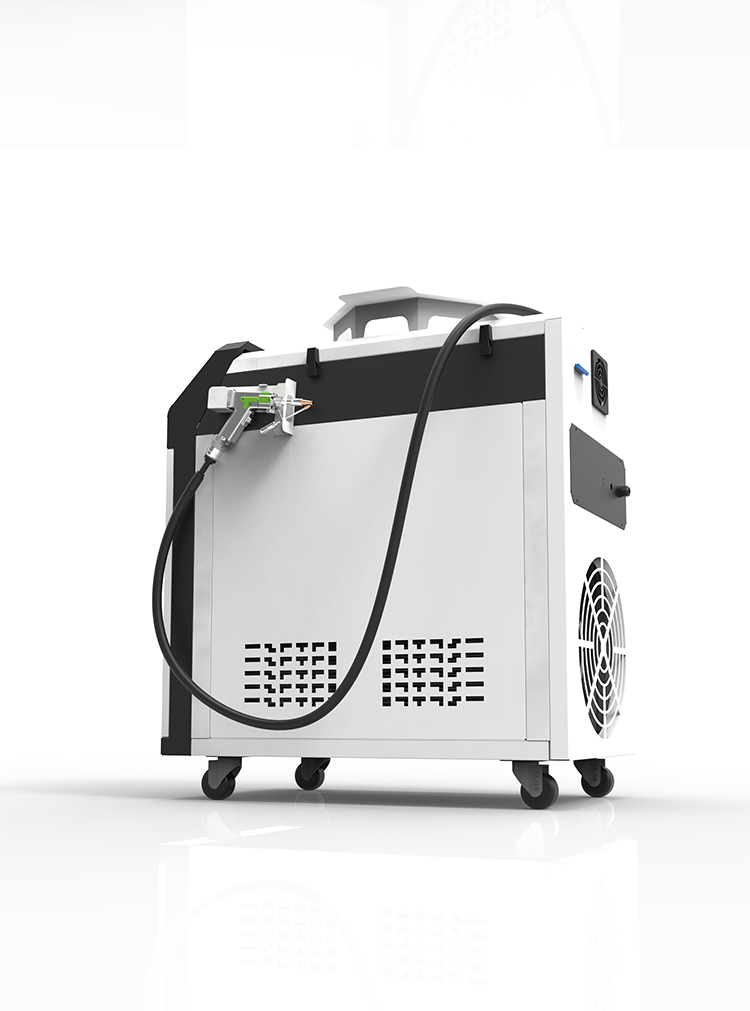

2000W Handheld laser welding machine

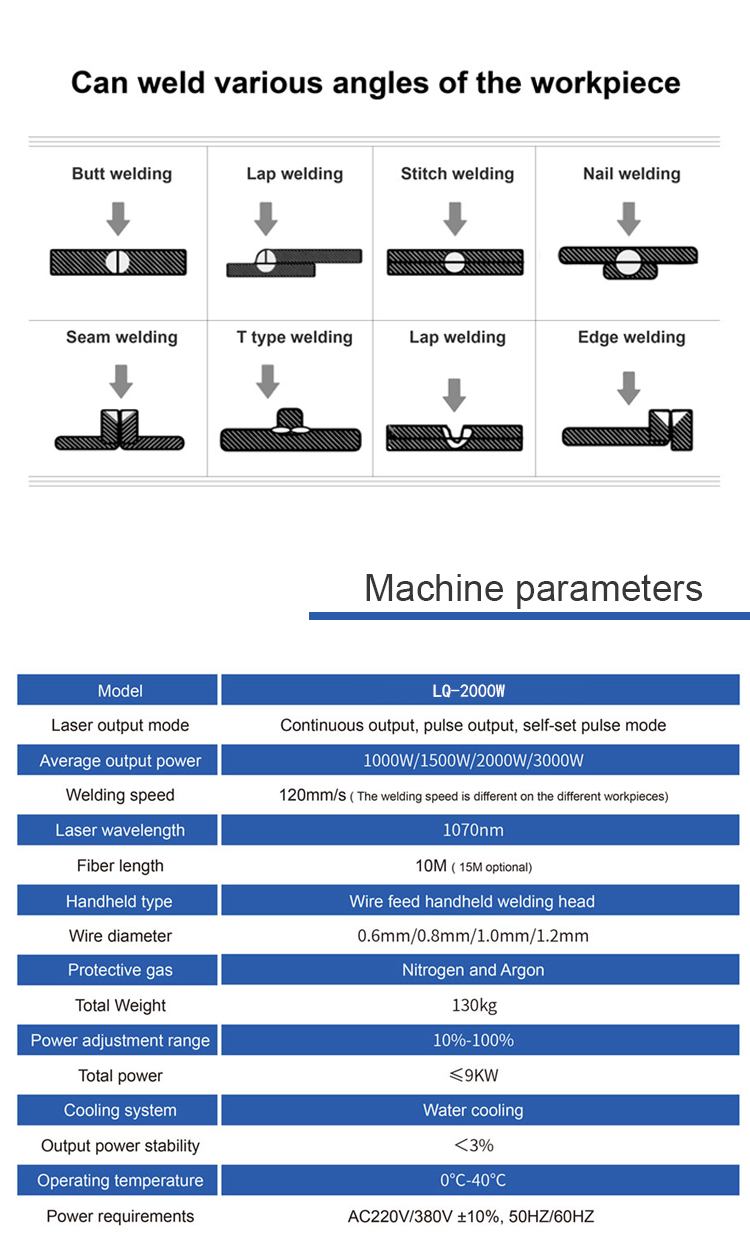

Main parameters

numberProjectParametersDescription
1Laser power1000WCommon power: 1000-1500-2000-3000
2Laser wavelength1064nmThe laser has a continuous laser wavelength of 1064.
3Fiber optic cable length10/15mLength of cable from cabinet to gun head
4Laser welding speed3-12mm/sWire feeder can be added
5Protective gasNitrogen / argonWelding needs to be protected by inert gas
6Protective lens20*2Clean air source protection lenses have a longer life.
7Cooling modeWater coolingCW lasers are all water-cooled.
7Working voltage200/380V3000W uses 380V voltage
