1000W Laser rust removal machine

1000W Laser rust removal machine

The 1000W laser rust remover has a very good floating rust removal efficiency on the metal surface. If you need greater efficiency, you need to choose a higher power laser.

price$4000-4500

The 1000W Laser rust removal machine is an entry-level type. Due to the rapid update and iteration of the laser in recent years, 1000W is already the lowest power in the CW laser.

This power can satisfy the cleaning of floating rust oil; at present, our high-power laser rust remover is 3000W.

Video of on-site operation of laser rust remover

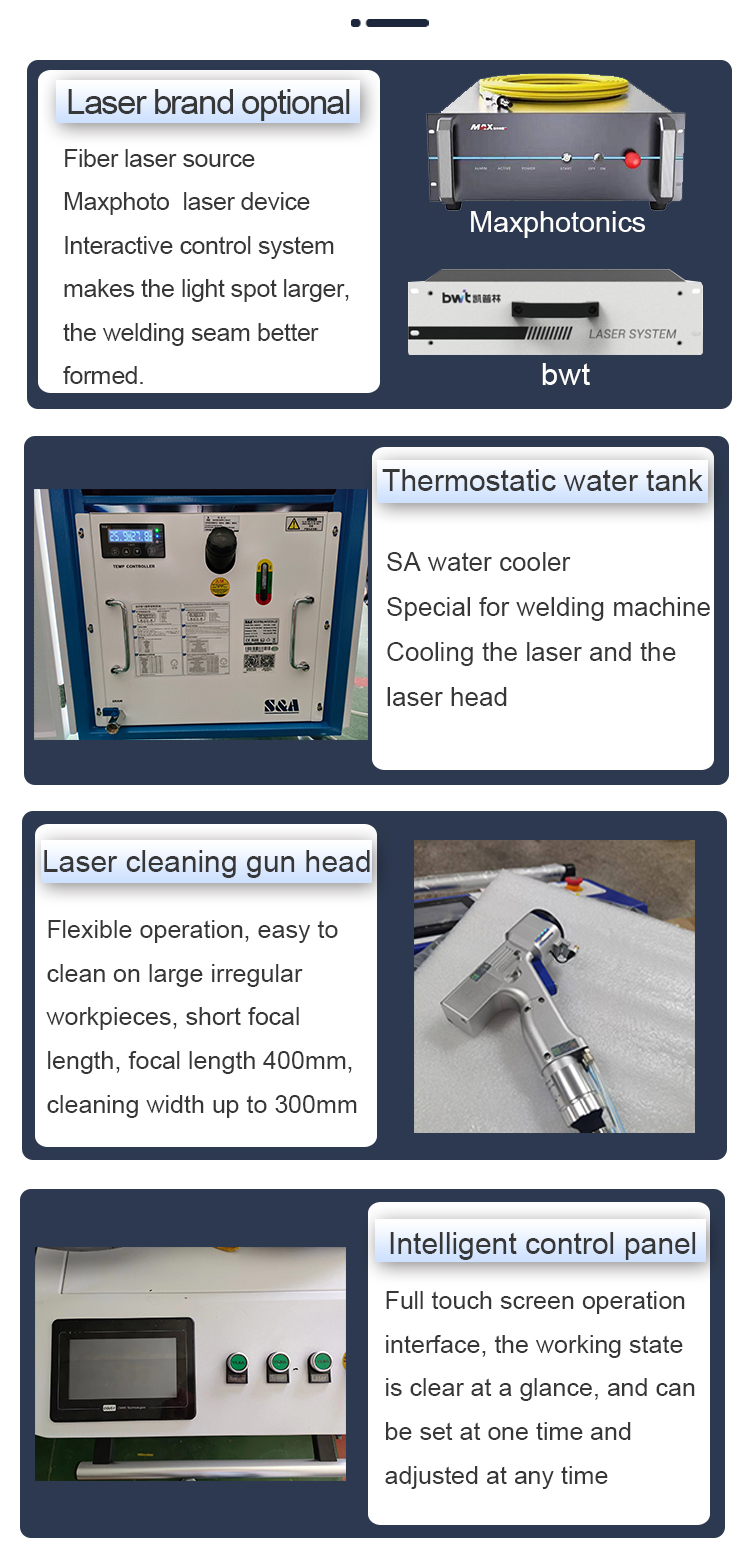

The main components of laser rust remover:

numberProjectBrandDescription
1LasersMAX/BWT/RaycusTop laser manufacturing factory in China
2Control systemRelfarIndustry front-line control system brand
3Hand-held rust removal headRelfarSpecial executive parts for rust removal
4Water coolerS&A ChillerLaser preferred Refrigeration Brand
5CabinetGoldlaserOne of the appearance patents of Lang Qi
6Electrical accessoriesGHJTMainstream quality of electrical appliances

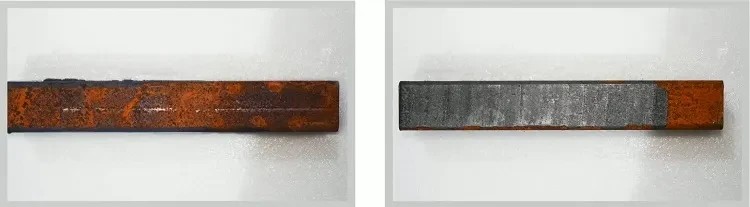

Effect photo of laser rust remover

1000W Laser rust removal machine

Main parameters

numberProjectParametersDescription
1Laser power1000WCommon power: 1000-1500-2000-3000
2Laser wavelength1064nmThe laser has a continuous laser wavelength of 1064.
3Fiber optic cable length10/15mLength of cable from cabinet to gun head
4Rust removal efficiency1/min30-200mm internal tunable
5Protective gasNitrogen / argonWelding needs to be protected by inert gas
6Protective lens30*2Clean air source protection lenses have a longer life.
7Cooling modeWater coolingCW lasers are all water-cooled.
7Working voltage200/380V3000W uses 380V voltage

Portable Laser Rust Removal Machine Advantages

1. Non-contact cleaning, without damaging the base of the parts.

2. Precise cleaning, can achieve precise location, precise size selective cleaning.

3. No chemical cleaning fluid, no consumables, safety and environmental protection.

4. Simple operation with a special control panel, which is convenient to control.

5. It is portable and can be hand-held or cooperated with a manipulator to realize automatic cleaning.

6. Ergonomic design, greatly reducing the labor intensity of operation.

7. The laser rust cleaning system is stable, almost no maintenance.
